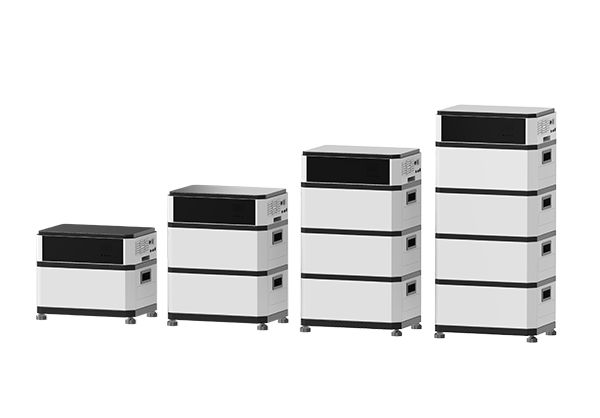

Stacked Energy Storage – HR5K-100B

◆ Vehicle specification level BMS protection

◆ 3000 ultra long cycle life

◆ Compact structure and easy installation

◆ Support for WIFI remote control

Type	HR5K-100B
Battery
Battery Type	LiFePO4@GF
Nominal Capacity	100Ah
Rated Battery Voltage	51.2V
Operating Voltage Range	40~58.4V
Max Charging Current	100A
Max Discharge Current	100A
Max Stack Quantity	4
Operating Temperature Range	Charge:0~60℃ & 32~140℉ Discharge:-20~60℃ & -4~140℉
Operating RH	0-95% RH
Working Altitude	<3000m
Assembly Method	Stack
Net Weight	≈51kg
LWH（Size）	1287560430mm
PV Input
Num. of MPPT Trackers	1
Max.PV Array Power	5200W
Max.Input Current	18A
Max.Voltage of Open Circuit	500Vdc
MPPT Voltage Range	120~450Vdc
MPPT Tracking Effciency	99.9%
Inverter Output
Rated Output Power	5,000W
Max.Peak Power	10,000W
Rated Output Voltage	120Vac(Single-Phase L+N+PE)
Max. Battery Inverter Effciency	>90%
Load Capacity of Motors	4HP
Rated AC Freque	50/60Hz
Waveform	Pure sine wave
