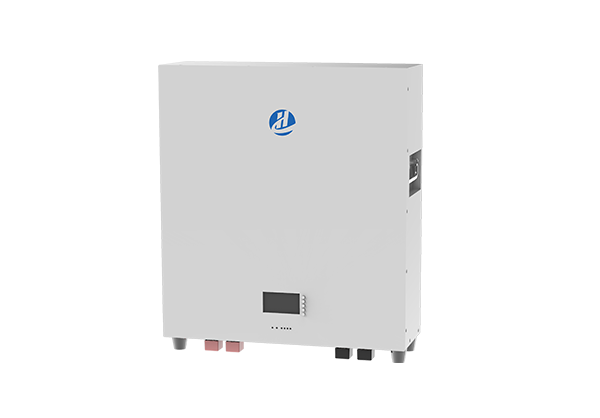

Product Type：Home Energy Storage
Email： li.wg@hc-energy.cnTel： 0769-89081828
◆ Ultra thin wall hanging design, beautiful and atmospheric, perfectly integrated into the home environment
◆ Vehicle level BMS system with protection functions such as overcharging, discharging, overcurrent, high and low temperatures
◆ Equipped with LED screen to display voltage, current, temperature and other information, convenient for users to query
◆ Support up to 15 sets of parallel use to cope with high power demand environments
| Type | HR5K-100C | HR5K-206C | HR5K-280C |
| Battery Type | LiFePO4@GF | LiFePO4@GF | LiFePO4@GF |
| Rated Battery Voltage | 51.2V | 51.2V | 51.2V |
| Energy | 5.12KWh | 10.54KWh | 14.33KWh |
| Nominal Capacity | 100Ah | 206Ah | 280Ah |
| Standard Charging Current | 20A | 40A | 56A |
| Max Charging Current | 100A | 150A | 200A |
| End Charging Current | 2A | 4A | 5.6A |
| Standard Discharge Current | 20A | 40A | 56A |
| Max Discharge Current | 100A | 150A | 200A |
| L*W*H（Size） | 582*500*192mm | 600*520*192mm | 620*540*192mm |
| Net Weight | ≈45kg | ≈76kg | ≈100kg |
| Discharge Temperature Range | -10℃~55℃ & 14~131℉ | ||
| Charge Temperature Range | 0℃~45℃ & 32~113℉ | ||
| Storage Temperature Range | -40℃~55℃ & -40~131℉ | ||
| Operating Temperature Range | ≤85% | ||
| Shell Material | SPCC | ||
| Current Limiting Function | Limited 20A | ||
| Precharge Function | Enable | ||
| Communication Type | 232/RS485/CAN | ||
| Dial-up Add | 4 Red LED | ||
| Reverse Connection Protection | Enable | ||
