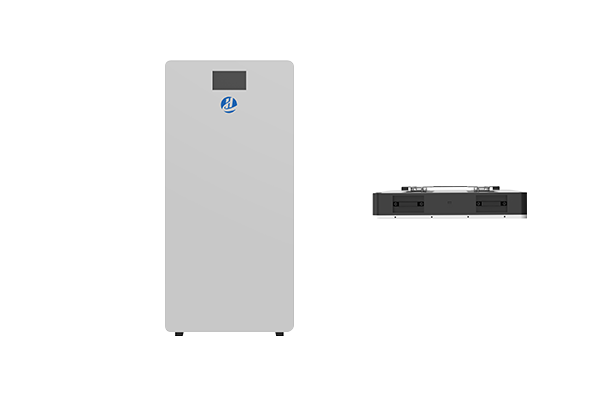

Wall-mounted Energy Storage – HR5K-100D

Product Type:Home Energy Storage

Email: li.wg@hc-energy.cn

Tel: 0769-89081828

◆ Ultra thin wall hanging design, beautiful and atmospheric, perfectly integrated into the home environment

◆ Vehicle level BMS system with protection functions such as overcharging, discharging, overcurrent, high and low temperatures

◆ Equipped with LED screen to display voltage, current, temperature and other information, convenient for users to query

◆ Support up to 15 sets of parallel use to cope with high power demand environments



Type HR5K-100D
Battery Type LiFePO4@GF
Rated Battery Voltage 51.2V
Energy 10.54KWh
Nominal Capacity 206Ah
Standard Charging Current 40A
Max Charging Current 150A
End Charging Current 4A
Standard Discharge Current 40A
Max Discharge Current 200A
L*W*H(Size) 601*115*1270mm
Net Weight
Discharge Temperature Range -10℃~55℃ & 14~131℉
Charge Temperature Range 0℃~45℃ & 32~113℉
Storage Temperature Range -40℃~55℃ & -40~131℉
Operating Temperature Range ≤85%
Shell Material SPCC
Current Limiting Function Limited 20A
Precharge Function Enable
Communication Type 232/RS485/CAN
Dial-up Add 4 Red LED
Reverse Connection Protection Enable
